 Forum / Engine, gearbox, exhaust system / how process to dismantling dashboard
20.08.2012 13:04 - how process to dismantling dashboard 2500311
samir1335
City: Bouira, Car: Citroën C5 I 2.0HDi XPosts: 6
99 Send email
> hello,

how are you a need help to dismantling dashboard. i have probleme with air conditioning (the permanent hot air in driver side).

thanks

20.08.2012 13:23 - Re: how process to dismantling dashboard 2500315
jumep
City: Piestany, Car: Citroen C6 2.7HDiPosts: 15259

Moder?tor Send email
try some webtranslate on this: .link.

there are 2 types of electric engines (moving flaps)
one with brass shaft and one with plastic shaft - depends on year of production
on the pictures you can see how i have fixed it

originnaly you have to buy new engine with longer shaft (order / part number: 6447 TK)

dissmantling frot panel: pictures are enough: .link.

when you remove the airconditioning panel, you are able to remove the engine

.link.

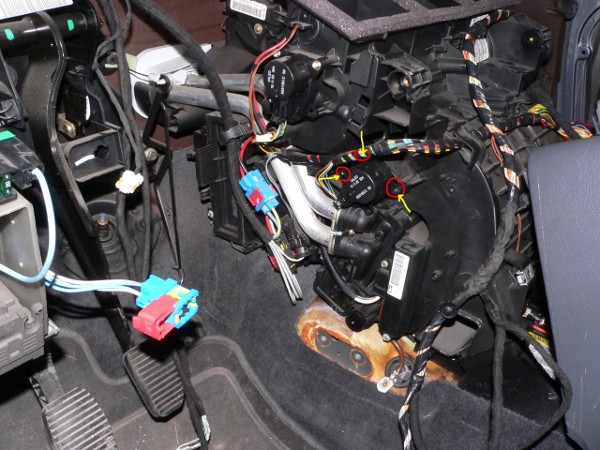

red rings shows screws

if you need more help, write, i'll try to translate whole document

20.08.2012 14:57 - Re: how process to dismantling dashboard 2500336
samir1335
City: Bouira, Car: Citroën C5 I 2.0HDi XPosts: 6
99 Send email
hello

for this part see doc

Attachments:

20.08.2012 16:16 - Re: how process to dismantling dashboard 2500358
jumep
City: Piestany, Car: Citroen C6 2.7HDiPosts: 15259

Moder?tor Send email
you dont need to dismount whole dashboard to fix left side heat only problem

20.08.2012 18:37 - Re: how process to dismantling dashboard 2500388
samir1335
City: Bouira, Car: Citroën C5 I 2.0HDi XPosts: 6
99 Send email
hello,
i can't access to second motors see the red circle

Attachments:
evapor housing.bmp ( 1709046b ) -

20.08.2012 20:44 - Re: how process to dismantling dashboard 2500417
jumep
City: Piestany, Car: Citroen C6 2.7HDiPosts: 15259

Moder?tor Send email
give me some time, tommorow i will make you photo instructions how to remove it and what tools i am using

now only few words:
remove plastic "L" under steering wheel, remove SOUND PROOFING LEFT (nr 5 from dashboard.bmp)
remove airconditioning panel (shown here: .link.

in the hole after airconditioning panel you will see screw (head 6mm) - remove it with wrench
in the hole after that L (between steering wheel and left soundproofing on the dashboard) with loooong socket wrench remove 2 other screws

21.08.2012 12:27 - Re: how process to dismantling dashboard 2500522
samir1335
City: Bouira, Car: Citroën C5 I 2.0HDi XPosts: 6
99 Send email
thanks Jumep
