 Category: / Articles & Guides / Equipment



Dashboard Car Computer


Year 2001 - 2003

System VDO Siemens ( color navigation )
known also as RT2 or RD3(???)
Existing in  monochromatic/bw version.
BUS:
VAN
Navigation unit location:
front passenger box
Telemetric computer location:
on a top of front passenger box ( in dashboard )
Latest known firmware:
v6.0 ( unverified v8.0 )
How to show firmware:
after insertion of system CD
Control:
rotary controller+ 3 buttons
Photo:

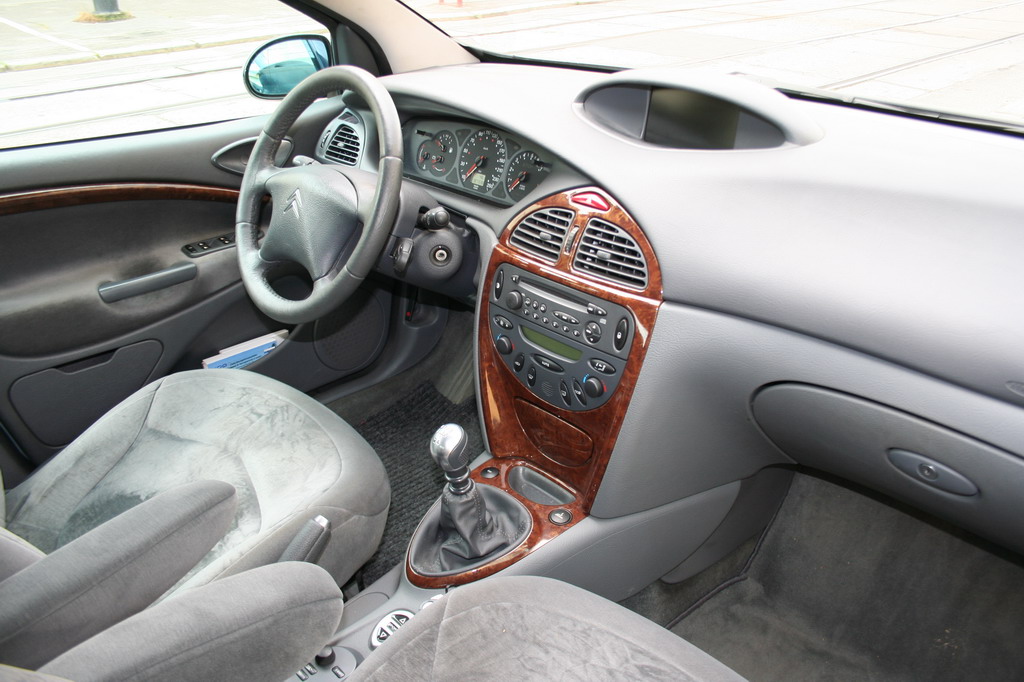

on picture is VDO 2003 ( bez GSM ) + CD player

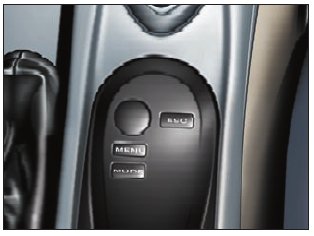

Detail of rotary controller

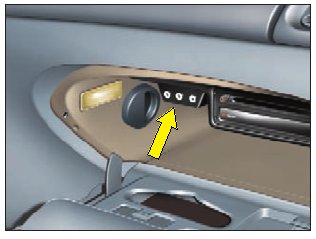

Detail of front passenger box. Yellow arrow is pointing to A/V input. Navigation computer with CDROM is on right of it.



Year 2003 - 2005
System RT3 ( color navigation )
BUS:
VAN(old model), CAN(new model)
Navigation unit location:
part of car radio
Telemetric computer location:
?
Latest known firmware:
van: RT3 v5.52a b773
can: RT3 v6.63 build 890
How to show firmware:
press MENU for 3 seconds
Control:
on navigation panel ( radio )

RT3: Picture from citroen manual.



Year 2005 -
System RT4 ( color navigation)
BUS:
CAN
Navigation unit location:
part of car radio
Telemetric computer location:
?
Latest known firmware:
RT4 SW version 7.10
How to show firmware:
?
Control:
on navigation panel ( radio )

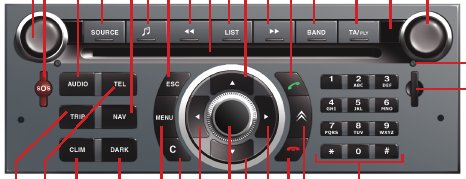

RT3: Picture from citroen manual.
